Description

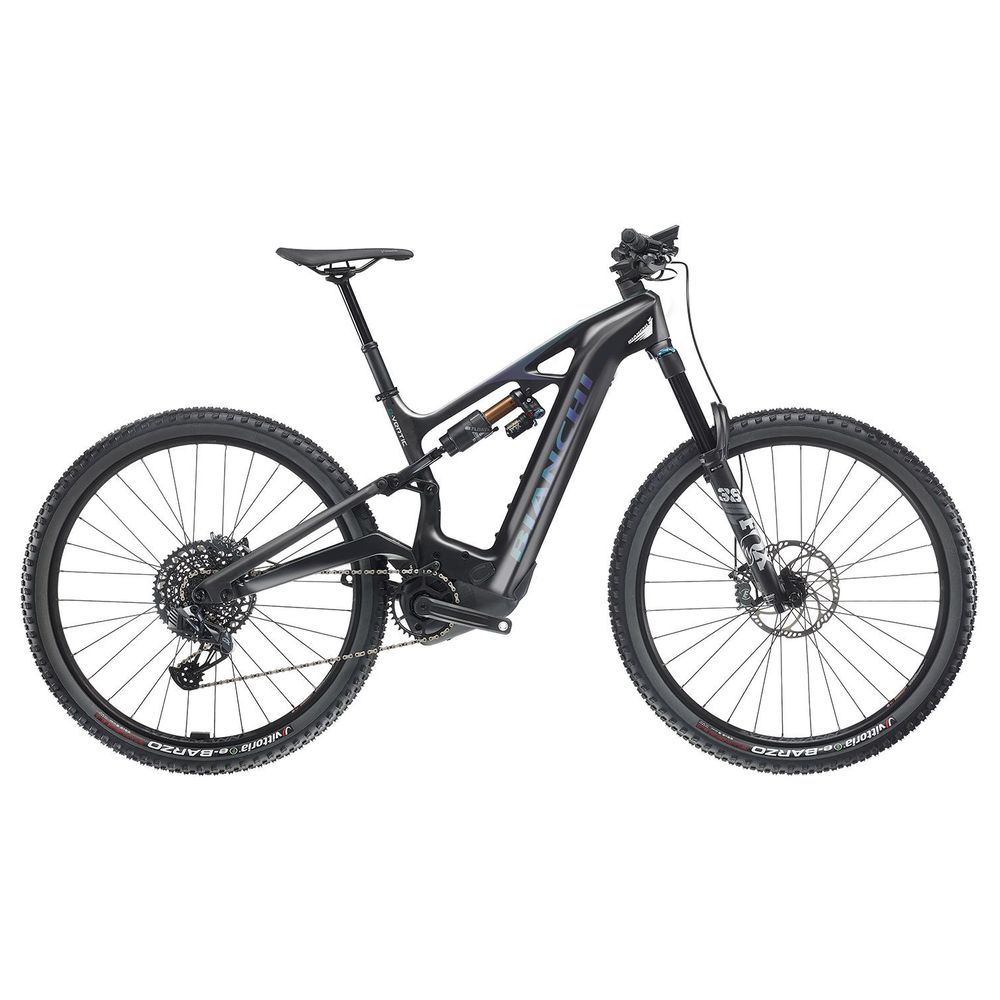

Bianchi E-Vertic FX Type Pro Bosch Performance GX AXS
YSBD6 GX AXS 12SP
TECHNICAL SPECIFICATIONS
ENGINE UNIT
Bosch Performance CX BES3 MOTOR
750 Wh Bosch Powertube BATTERY, with Kiox display
CHASSIS
FRAME KIT e-VERTIC FX-Type Pro FULL SUSPENDED CARBON/ALUMINIUM sizes: 43-48-53 – 160 mm front travel – 65 mm rear travel – HT 1.5″” tapered – 31.6 mm seat post – 12×148 mm dropouts – Dropout set (left + right) TA 148mm external derailleur + S
FORK Fox, 38, A, FLOAT, 29 inch, PS, 160, Grip, 3Pos, 15QRx110, 1.5 T, 58HT, 44mm rake
REAR SHOCK Rock Shox Deluxe Select +, 230/65, DebonAir Linear, Damper Type RT, Compression Tune L1, Lockout Force 380, Shaft 25×8, external rebound adjust, volume reducer 0 Neg 0 Pos
Acros HEADSET 1″”””1/8 up / 1.5″””” down – Starnut bearings, alloy top cap
TRANSMISSION
Sram EC GX AXS EAGLE RH CONTROLS 2 MMX BUTTONS
Sram RD GX1 AXS LUNAR DERAILLEUR
CRANKSET Sram EAGLE 34T BOSCH GN4 DM ST EMTB B148 Crankset CK-320 FSA E-Bike Diecast – ISIS / 165mm
BOTTOM BRACKET included in the engine
CHAIN Sram CN GX EAGLE 126LI PWR.LCK 12v
Sram CS XG 1275 EAGLE 10-52T SPROCKET SET
BRAKES
BRAKES MT7 (4-piston banjo caliper) Magura Shiftmix 4 for front left, I Spec-EV compatible Magura Shiftmix 3 for rear right QM44 adapter (180 – 203)
Magura DISCS – 203 mm
WHEELS
Formula REAR HUB, DISC HUB, CENTER LOCK, J-BEND, THRU AXLE, WITHOUT QR, FOR SRAM XD 11 SPEED, 4 SB, 32H
FRONT HUB Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, 15×110, 32h, 2 SB
TIRES Vittoria e-Barzo 29×2.6 XC-Trail TNT
HANDLEBAR
STEM Velomann Ursa, 50 mm, 35 mm, 1″1/8
Velomann bend, width 780mm diam.35mm, rise 20mm, backsweep 9°
TAPE/GRIPS T-One Rock T-GP34 single grip, TPR, plastic inner body
SADDLE
SEATPOST Alpha1 Series – 31.6 mm – RM07 I-Spec EV Remote – 1800 mm Cable Length – Velomann Logo 125 mm – for size M 150 mm – for size L/XL
Velomann saddle, length 277mm x width 144mm
*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
