Description

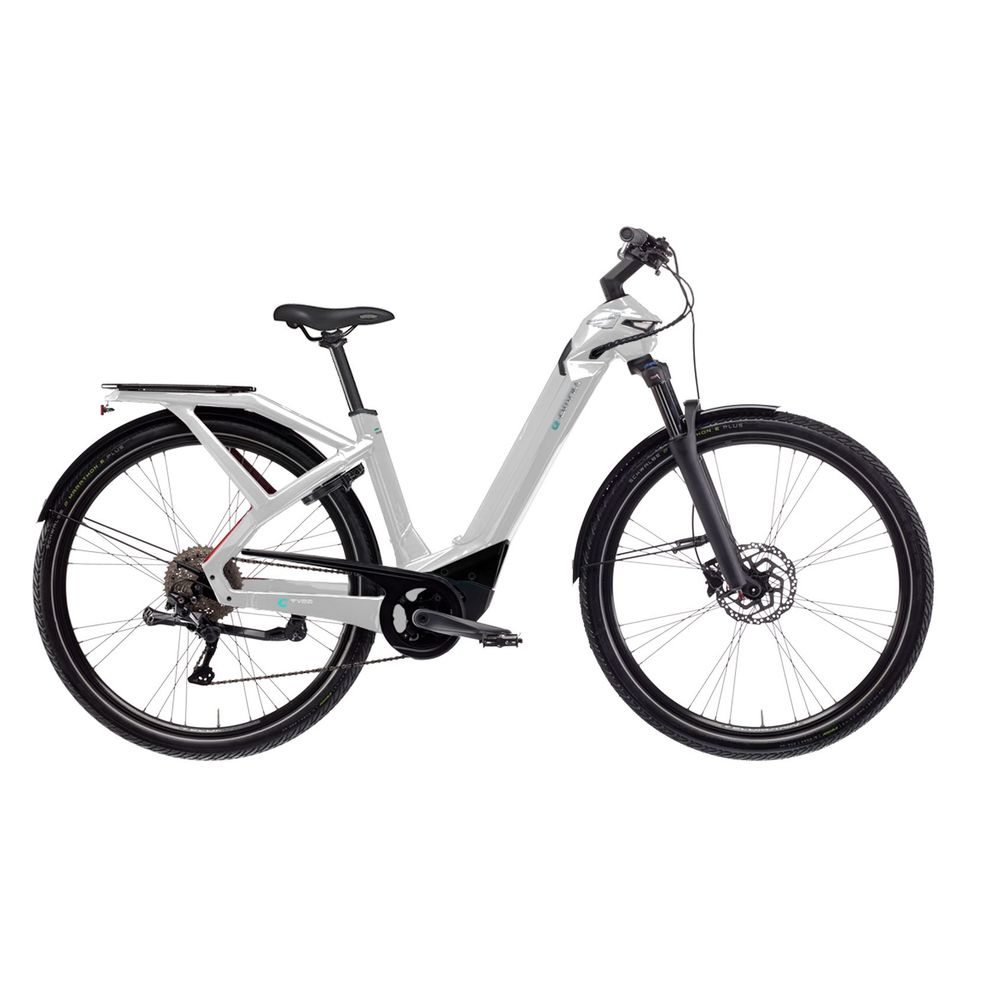

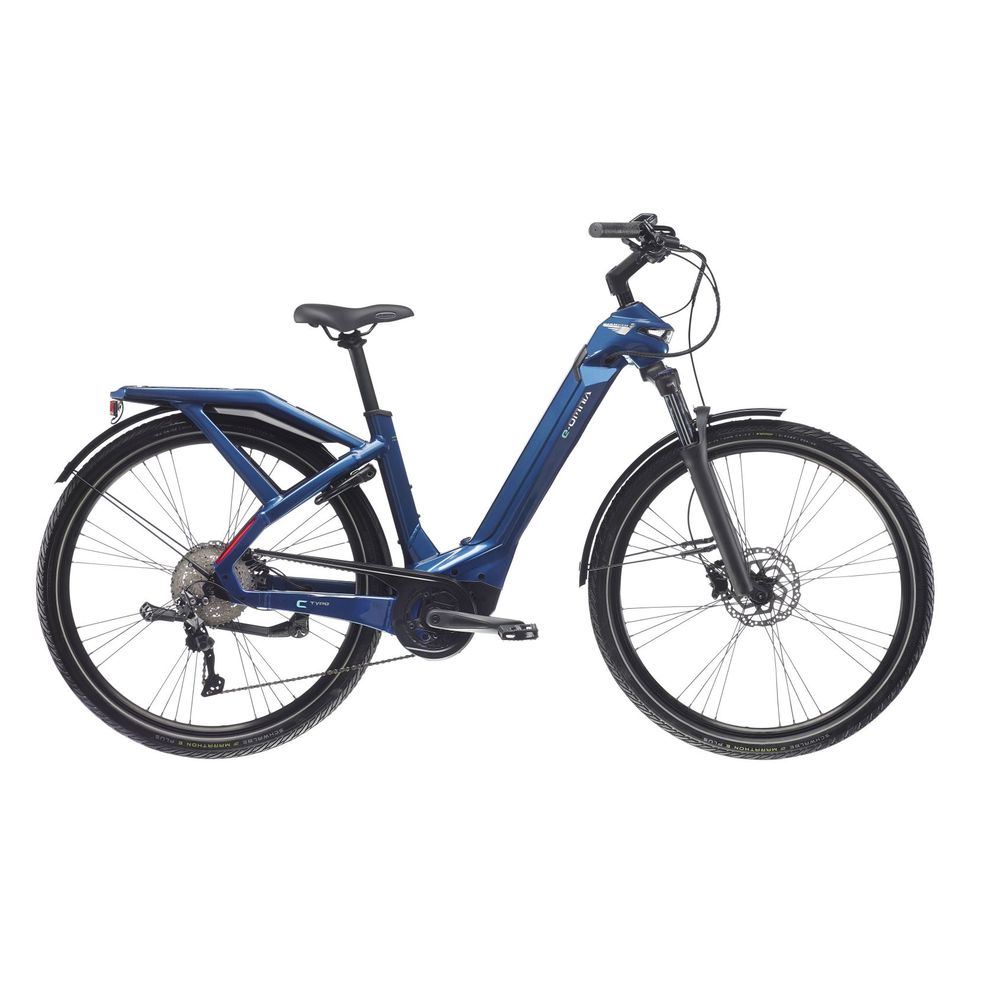

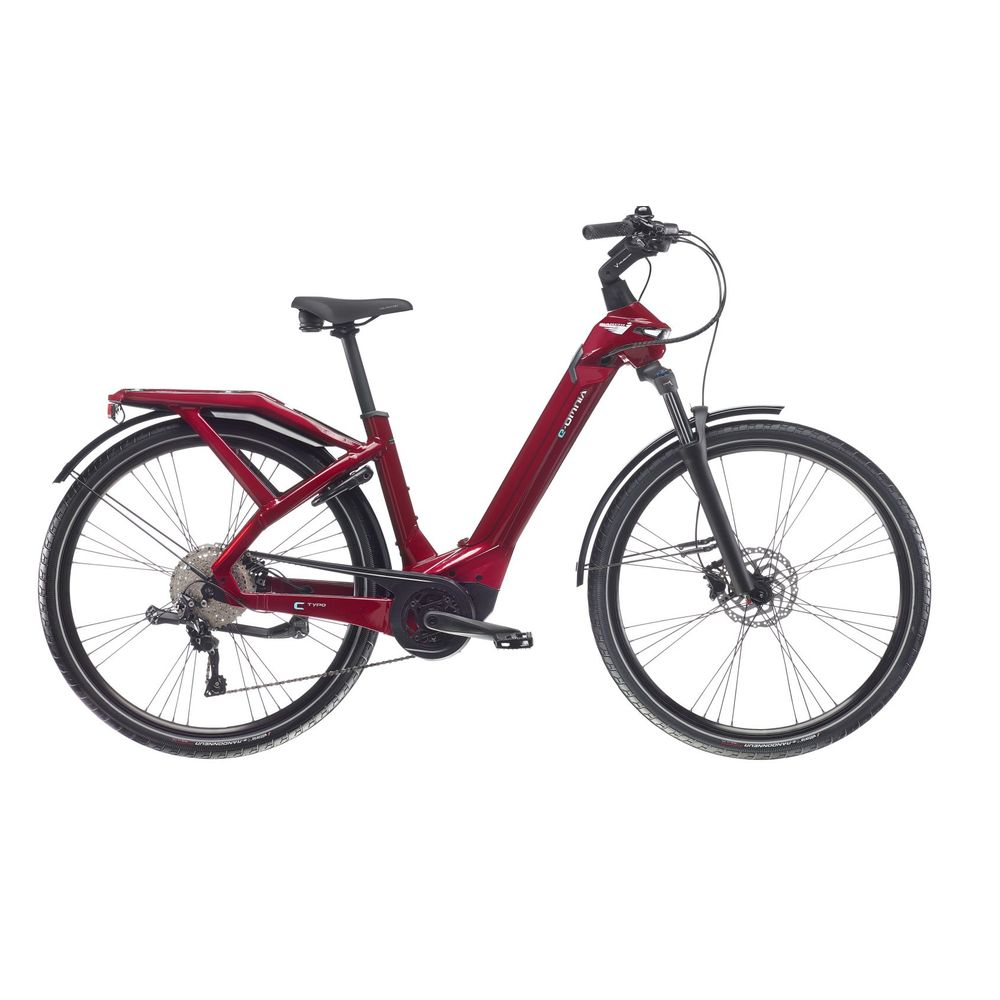

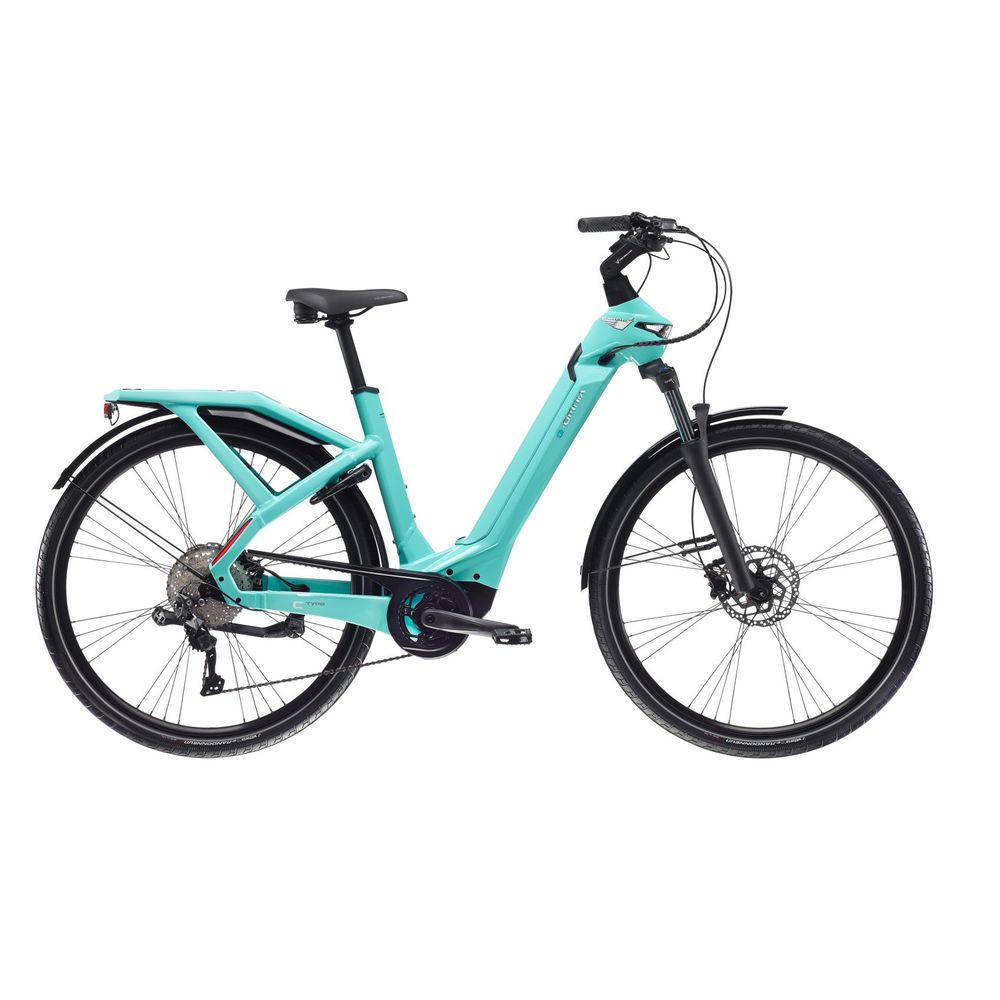

Bianchi E-Omnia C Type Donna Bosh Performance 500Wh Deore 1×10
YRBE1 DEORE 10V
TECHNICAL SPECIFICATIONS
ENGINE UNIT
BOSCH PERFORMANCE LINE CX 250W 85NM ENGINE
BOSCH POWERTUBE 500WH BATTERY
CHASSIS
FRAME KIT e-Omnia C Type Step Thru chain drive ALU, Sizes: SM, MD, LG (45-50-55), QR 135mm, Ready for fixing chain guard, Post mount disc brake type 160mm, Ready for fixing rear stand, Rear rack for
SR SUNTOUR XCM34 BOOST NL0 DS 29″ FORK 100MM TRAVEL
Fsa NO.55R/558 1.5″ HEADSET
TRANSMISSION
SHIFTERS Shimano Deore SL-M4100-R, 10v
SHIMANO DEORE RD-M5120 SGS 10S DEAR GEAR, SHADOW+ DESIGN
FSA ALUMINUM CRANKSET, CRANK LENGTH: 170MM, BB ISIS AXLE, W/38T FSA MEGATOOTH CHAINRING
BOTTOM BRACKET Included w/motor unit
Kmc e10S NPBK Anti-Rust CHAIN 1/2″ x 11/128″ EPT
Shimano DEORE CS-M4100-10, 11-42T SPROCKET SET
BRAKES
BRAKES Shimano BR-MT200, resin pad
DISCS Shimano SM-RT10, diam. 180mm
WHEELS
VELOMANN EBIKE MAXX 29″ WHEELS – 622X25C
REAR HUB SHIMANO FH-MT400-B CENTER LOCK, BOOST 12X148MM
SHIMANO HB-MT400-B CENTER LOCK FRONT HUB, 15X110MM TA
TIRES WTB Slick 2.2 29″ 54/54 27tpi
HANDLEBAR
VELOMANN HI-RISE STEM, LENGTH: 90MM-43/48CM, 110MM-53CM
VELOMANN RISE HANDLEBAR, 740MM WIDTH, 31.8MM DIAM., 9° BACKSWEEP, 15MM RISE
HERRMANS LUNA LOCK TAPE/GRIPS
SADDLE
VELOMANN SEATPOST, length 350mm-15/17” and 400mm-19/21”, diam.31.6mm, 0mm seatpost, AL2014 stem
VELOMANN 8016HR0 SADDLE, STEEL FORK, 270X162MM
ACCESSORIES
SKS PET A65 R /28″ MUDGUARDS
VELOMANN R78 KING EVO REAR STAND MAX 35KG
REAR RACK Custom rear rack integrated into the frame design
CUSTOM INTEGRATED HEADLIGHTS AND SIDE LIGHTS DEVELOPED WITH SPANNINGA
CUSTOM INTEGRATED REAR AND SIDE LIGHTS DEVELOPED WITH SPANNINGA
*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
