Description

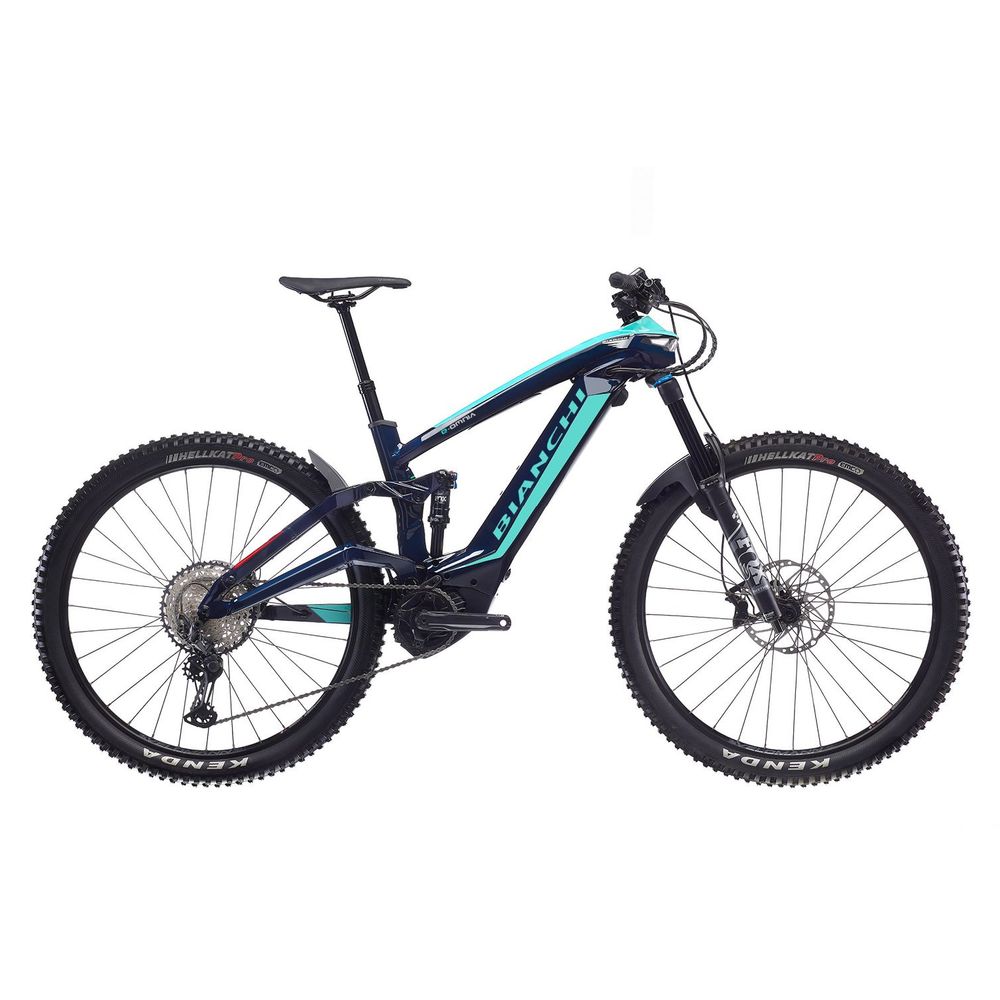

Bianchi E-Omnia FX Type OLI Edge
YTB1F GX 12V
EQUIPMENT Bianchi E-Omnia FX Type OLI Edge
ENGINE UNIT
OLI Edge MOTOR, 90Nm, 250W High visibility display
BATTERY Built-in battery 630Wh
CHASSIS
FRAME KIT e-OMNIA FX-Type ALU sizes: 43, 48, 53 – 12×148 mm thru axle – 180 post mount disc brake – 160 mm front travel – 150 mm rear travel
FORK Sram Rock Shox YARI RC 29B” Solo Air, 150mm, Extl rebnd, MOTION Control Damper, 1.1/5″ Alu HT, 15×110 BOOST, 35mm stanchions, PM 180mm disc mount, Maxle Stealth, 42mm offset
REAR SHOCK Sram Deluxe Select+ RL, 185/55 TR, external rebound adjustment, Hardware 8X25mm
FSA NO.55R/558 1.5″ HEADSET
TRANSMISSION
CONTROLS Sram SX EAGLE 1×12 GEARBOX Sram GX Eagle 12s
CRANKSET FSA CK-762/IS forged aluminum 165 mm ISIS
BOTTOM BRACKET Included in the engine
Sram SX EAGLE CHAIN, 12v
BRAKES
BRAKES Shimano, BL-MT501, BR-MT520, RESIN PAD
DISCS Shimano, SM-RT30, L 203MM, W/LOCK RING
WHEELS
WHEELS Velomann Tubeless Ready 29″, 622×30, 32 holes Velomann Tubeless Ready 27.5″, 584×30, 32 holes
REAR HUB Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, 2SB
FRONT HUB Formula CL-811 for Center Lock, 32h, 15x110mm TA, 2SB
TIRES Front: Pirelli Scorpion E-MTB M 29×2.6 TLR, 60tpi, Hyperwall, 65-622 Rear: Pirelli Scorpion E-MTB R 27.5×2.6 TLR, 60tpi, Hyperwall, 65-584
HANDLEBAR HANDLEBAR STEM Velomann, 1.1/8 x diam.35mm, 50mm for 15,17,19,21″
FOLD Velomann, width 780 mm, diam. 35 mm, rise 18 mm, backsweep 8°.
TAPE/GRIPS T-One Rock T-GP34
SADDLE
Velomann SEAT POST diam.31,6mm, remote internal cable routing, 120mm/150mm travel Velomann SADDLE, steel and carbon guide, 262×145
ACCESSORIES
FRONT LIGHTS Spanninga customized integrated light, 40 lux REAR LIGHTS Spanninga customized integrated light
*The manufacturer reserves the right to make any changes, technical improvements and cancellations of end-of-line items deemed appropriate to the products at any time and without prior notice. The descriptions and dimensions given in this publication are therefore not binding.
