Olympia HYSAK 900wh
RELIABILITY AND HANDLING ON EVERY TRACK
Olympia HYSAK is designed for cyclists who demand reliability and handling from their e-MTB even on highly technical trials. The frame is made of 6061 hydroformed aluminum. The sturdiness of the structure is combined with the slim lines of the Olympia Hysak. The central suspension is inserted into the upper tube and has a travel of 160 mm, ideal for keeping the bike stable and traction effective even on rough sections. The fork travel is also 160 mm. To give rigidity to the vertical axis of the frame, the seat tube connection has been strengthened. The propulsion sector is made up of the new 90 Nm Oli Edge engine, which is characterized by compact dimensions and weight, powered by the high-potential PowerNine 900 battery. Hysak is set up with a 27.5'' rear wheel and a 29'' front wheel.
BATTERY PowerNine 900Wh
Thanks to its extraordinary potential, the Olympia proprietary battery integrates excellently with above-average power motors, allowing the use of the vehicle without limitations. An e-bike equipped with a battery like the PowerNine 900 is able to excite every enthusiast, allowing them to fully enjoy the riding experience on any type of route, without the worry of seeing the charge run out and having to find a source of energy with a suitable charger.
ENGINE Oli Edge 90Nm
More compact, more powerful. The small size should not deceive: the new New Oli Edge engine expresses 90 Newton/meter, 5 more than the OLI Sport engine, reaching quadruple the force applied to the pedals by the cyclist.
MAIN AXLE REINFORCED WITH DOUBLE BEARINGS

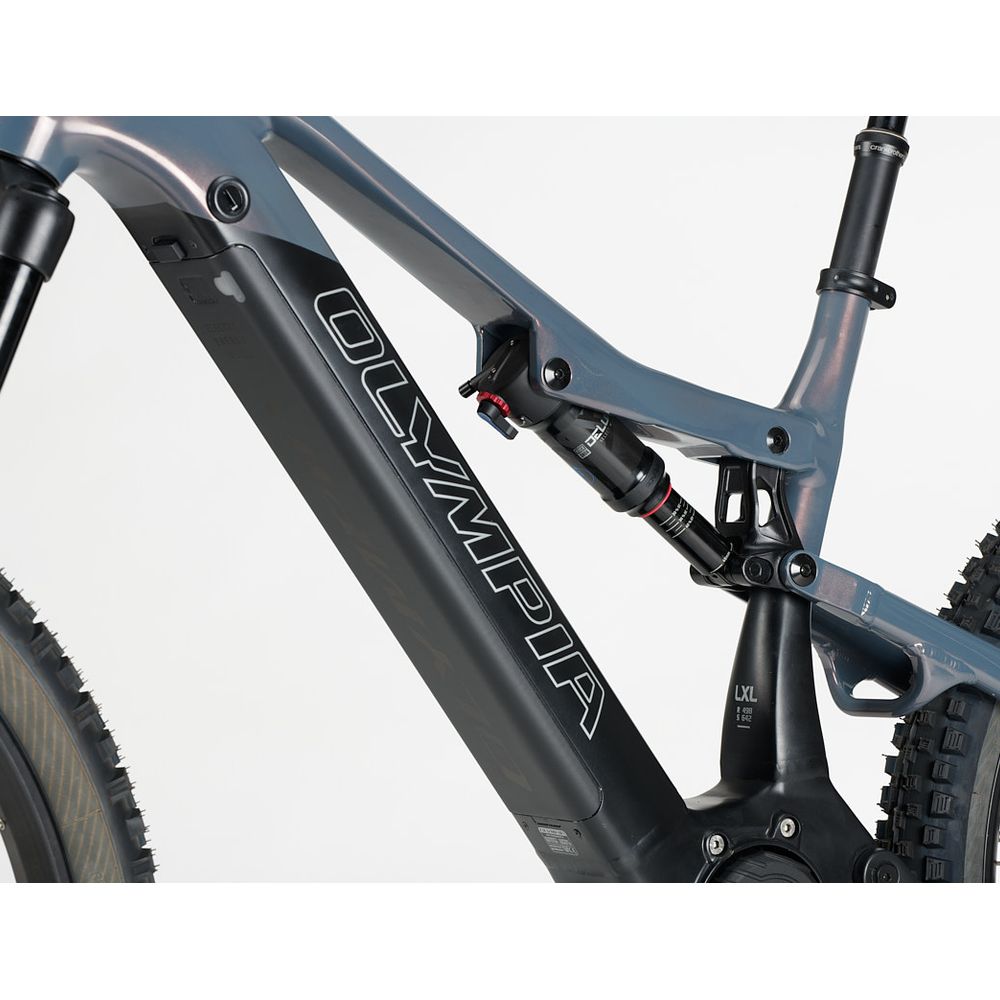

The presence of multiple pivot points serving the central shock absorber makes the issue of the robustness of the rear triangle crucial. In the new models, these parts have been strengthened and the rear end has been made extremely stable by working on both the axle near the engine pin and on the rear axle of the triangle. In both cases, the bearings inserted in the pin housings have been doubled on each side. The solidity of the triangle is also contributed to by an internal expansion system which, once tightened, further compacts the entire connection between the triangle and the engine block.
FLIP CHIP CHANGE THE SETUP OF YOUR E-BIKE
The Flip Chip located on the link allows you to change the bike's setup depending on the slope of the terrain and the type of sensitivity you want to give to the shock absorbing system. The rotation of the Flip Chip varies the opening angle of the steering and seat tube by 0.5°.
INVISIBLE WELDINGS FILLED AND SMOOTHED FOR MAXIMUM ELEGANCE
The welds of the front triangle have been filled and smoothed, to give the frame a unique look very similar to carbon. High-quality finishes to enhance a high-end aluminum model ideal for those who want safety and elegance from their e-bike.
Olympia HYSAK 900wh EQUIPMENT
Chassis Alloy 6061 Hydroforming Tubes
Disk brakes Shimano BR-MT420 4 Pistons
FORK Rock Shox PSYLO GOLD 29″ DFB 160mm Boost: 110mm | TAP | TA: 15mm
DISCS Shimano RT64 (203/180)
Shock absorber Rock Shox Deluxe Select+ Trunnion 205X65mm
CASSETTE Shimano Deore CS-M6100 (10/51)
MOTOR EDGE Oils (90Nm)
Chain Shimano Deore CN-M6100
TYPE Mid Motor / Torque Sensor
Saddle Sella San Marco GND
BATTERY Olympia PowerNine (900Wh)
Seat post Cranckbrothers Highline 3
Battery Support Inner Down Tube
Attack X-FEEL
GAITING Fsa (34T)
FOLD X-FEEL
commands Shimano Deore SL-M6100
CIRCLE / HUB Gippiemme / Shimano SLX 7110 F:15 R:12mm
EXCHANGE Shimano Deore RD-M6100 SGS (12s.)
COVERAGE Vittoria Mazza 29×2.6 TNT Vittoria Martello 27.5×2.8 TNT
WEIGHT 26.8 kg
GEOMETRY
*Cicli Olympia reserves the right to make all the modifications, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
