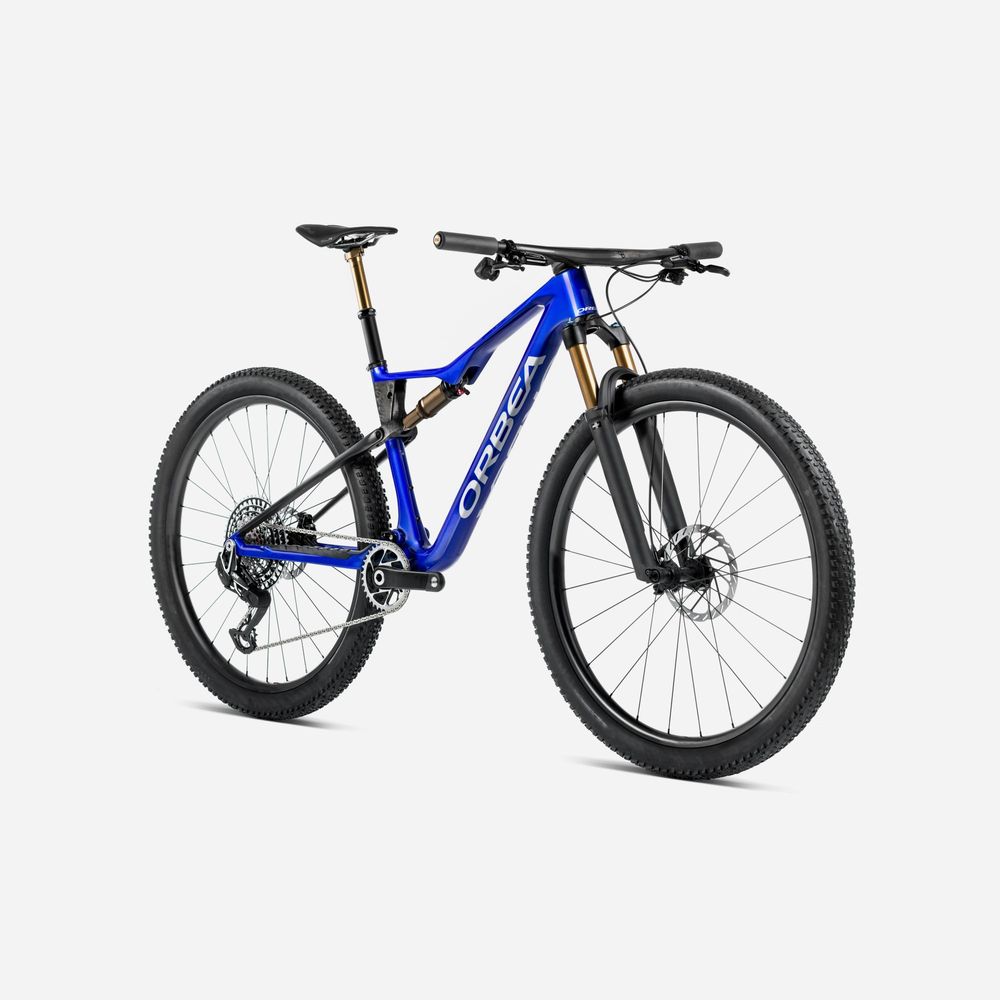

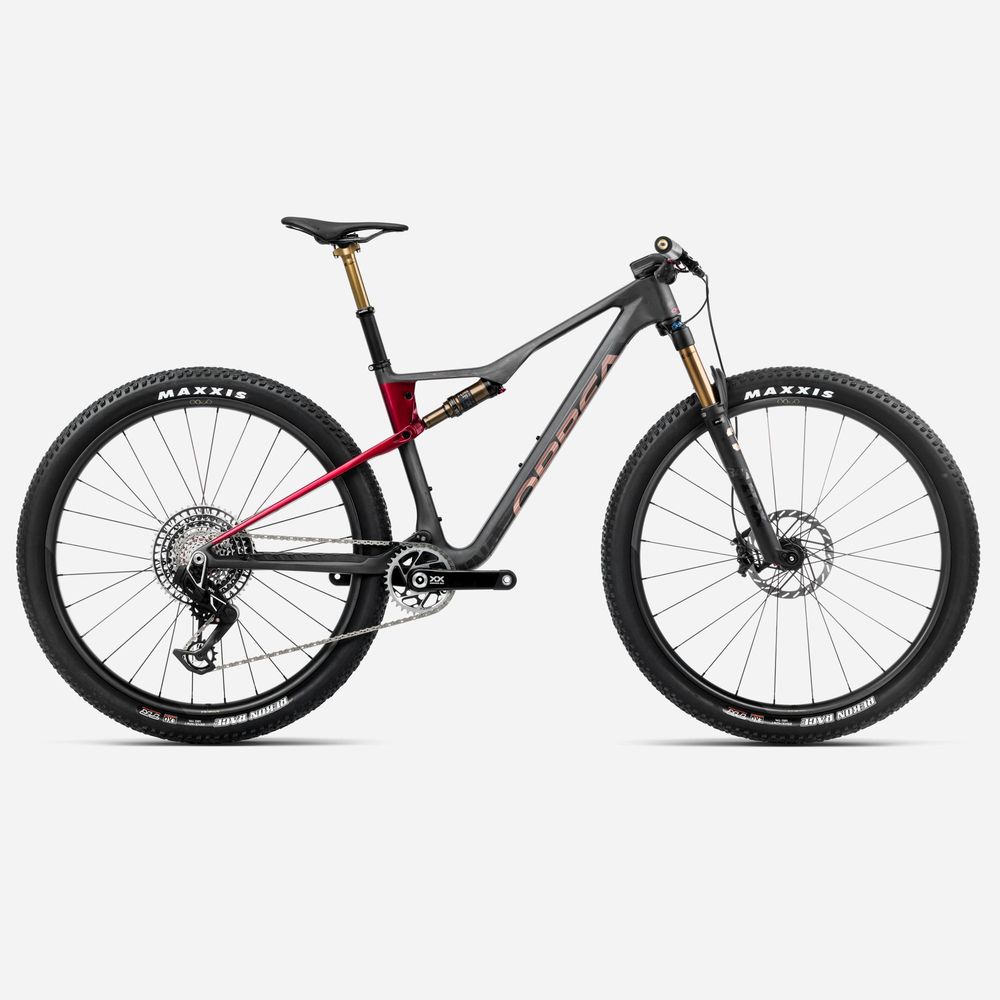

Orbea Oiz M-LTD Carbon 2025

Orbea Oiz M-LTD Carbon 2025

Get ready for the ride of your life. The Orbea Oiz is a no-compromise race machine that looks as good as it feels. Modern geometry, advanced construction and efficient suspension mean more grip and better control, inspiring you to attack every climb and let go of the brakes on today's most demanding trails.

BUILT TO FLY

Take control. Don't accept compromises. The Orbea Oiz is not a down-country or trail gun, but a stunning 120mm XC race weapon, as beautiful as it is effective. Modern geometries and intelligent suspension, designed from scratch around 120 mm, for extra fun on every ride without compromising on weight and efficiency. Simply put, the Orbea Oiz is the fastest XC bike to come out of our factories in over 180 years.

Lightweight. Super lightweight and race ready.
Strip away everything that’s superfluous and add only the features that improve the ride, and you get the Orbea Oiz, which at 1740g is one of the lightest XC frames around.

Every watt counts
You can't see the stiffness of the frame, but you feel the power transfer every time you push on the pedals.

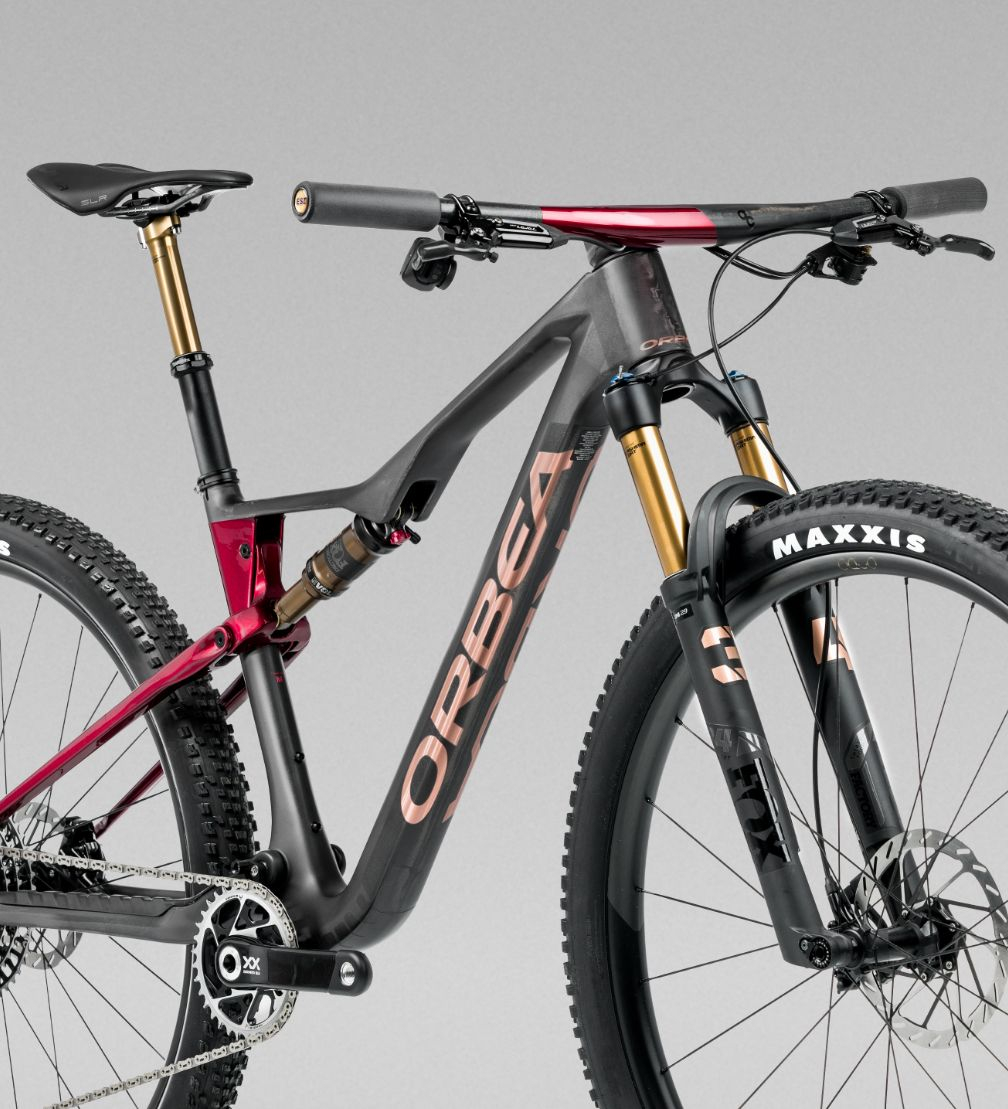

Racing geometry

The steep seat tube and lower stack put you in a position where you can fully control your ride. The longer reach, designed around a 60-90mm stem, provides stability on descents and keeps the front wheel balanced for attacking climbs and corners.

Efficient suspension

Designed from the ground up around 120mm travel suspension, the Oiz offers unbeatable confidence and efficiency. Attack on the climbs and shine on the descents.

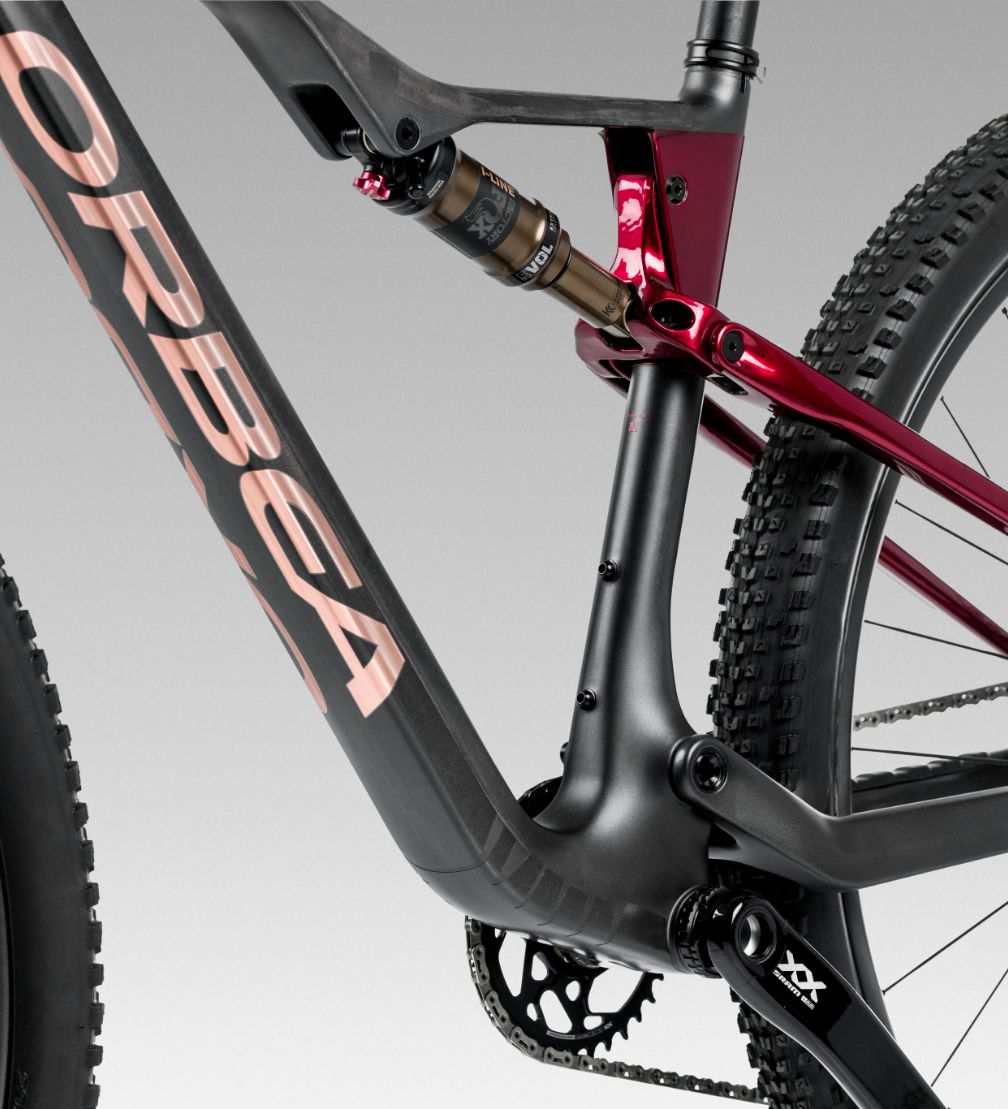

Regulated stiffness

For a bike to have the lightning-fast reflexes and efficiency of a true XC racer, it needs to be light and stiff. However, it’s possible for the frame to be too stiff to track efficiently.

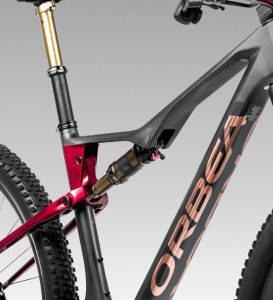

The most direct path to the shock absorber block

Our patented I-line is the most elegant, direct and integrated shock absorber block on the market. The cable runs internally to the remote, which means less cable, dirt and friction.

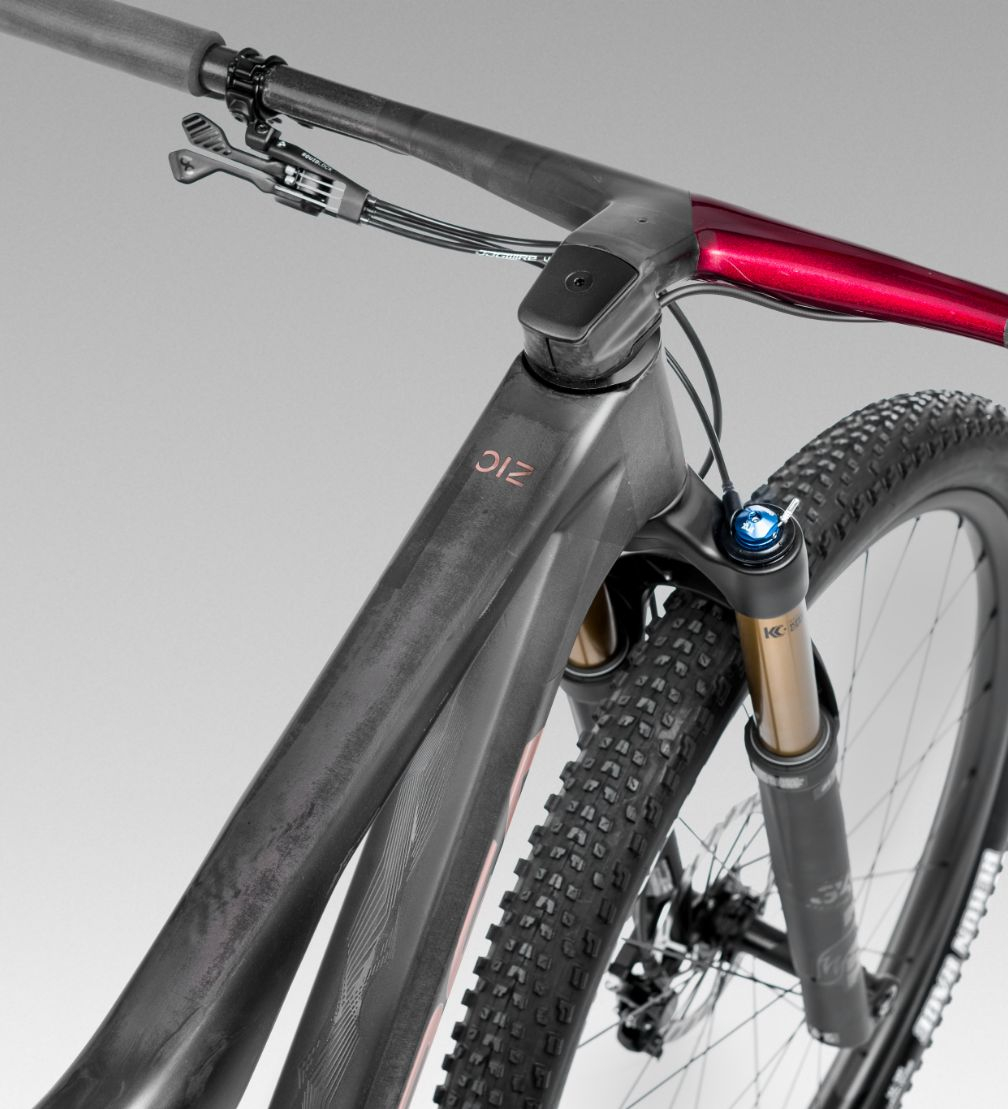

OMX Carbon

OMX is our lightest carbon for the most demanding riders. Simply put, it is the pinnacle of carbon fiber bike manufacturing.

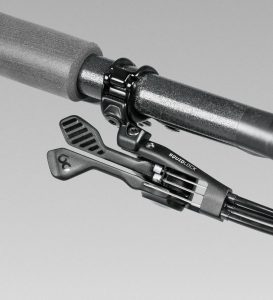

OC Squidlock Remote

When it comes to efficiency, it’s best to keep it simple. We’ve found a way to lighten the already sleek and discreet Squidlock, reducing it to just two levers: one for the suspension and one for the seatpost.

SPECIFICATIONS

Frame kit
Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock

Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune shock absorber 190x45mm

Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push to Lock QR15x110 Kashima Fork

Headset Alloy 1-1/2″, Black Oxidated Bearing

Transmission
Sram XX SL Eagle Dub Black 34t crankset

Sram AXS Pod Ultimate Levers

Sram XX-1299 Eagle SL 10-52t 12-Speed sprockets

Sram XX Eagle SL AXS shifter

Sram XX-SL Eagle 12-Speed chain

Cockpit
OC Mountain Performance MP10 Carbon handlebar, Cockpit, Width 760

Computer Mount SH-MP10 specific

Brakes
Sram Level Ultimate Carbon 2 piston Hydraulic Disc brakes

Wheels
Oquo Mountain Performance MP30LTD Wheels

Maxxis Rekon Race 2.40″ WT 120 TPI Exo TLR tire

Fox Kabolt Boost front block

Components
Fox Transfer SL Factory Kashima Dropper 31.6 seatpost

Selle Italia SLR Boost Fill Carbon Rail saddle Ø7×9 mm

OC Squidlock MP11 Remote Lock, Suspension + Dropper

*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
