Description

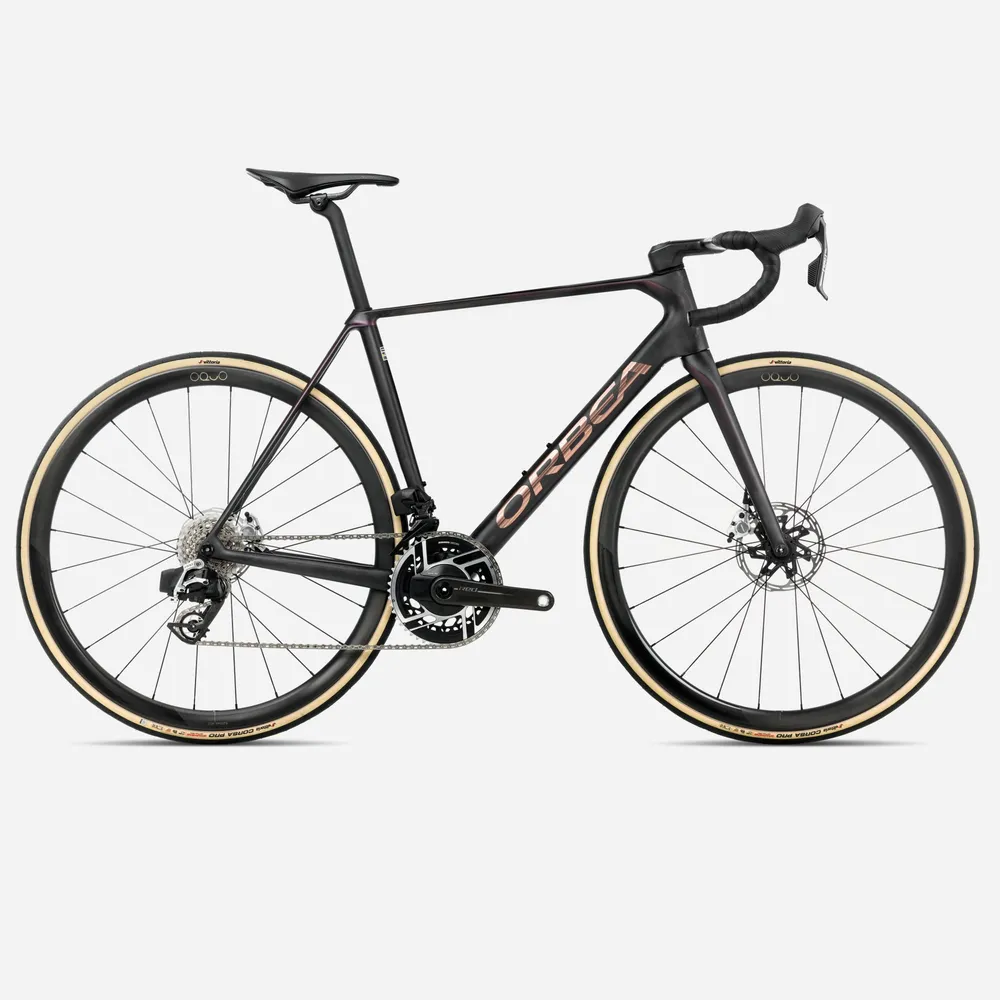

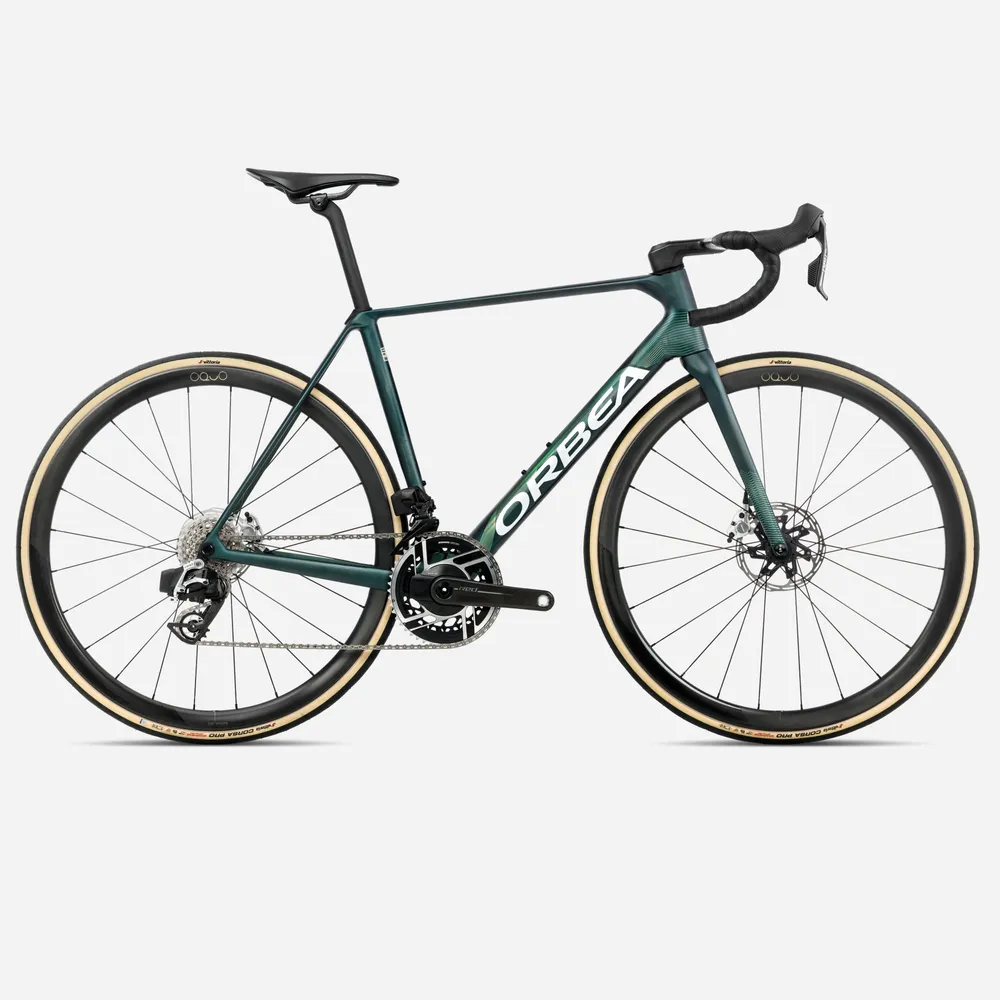

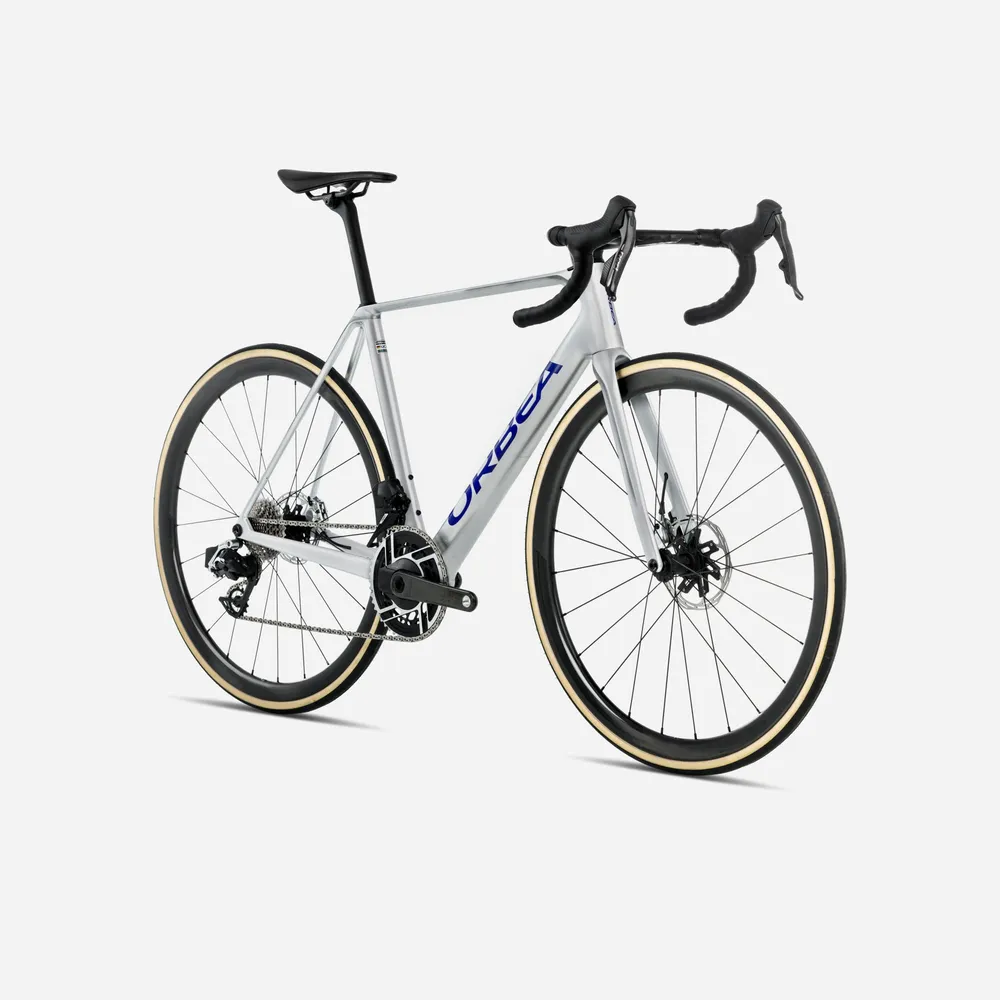

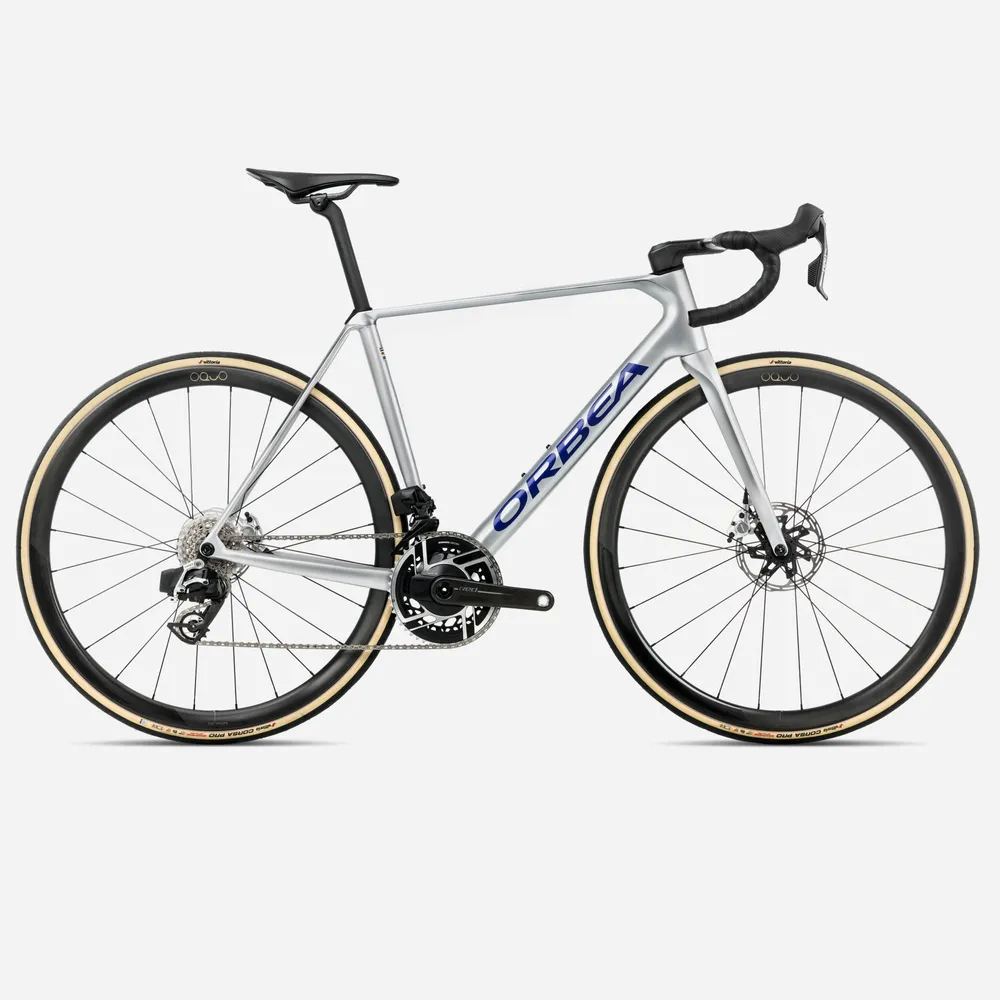

Orbea ORCA M11eLTD PWR 2026
Praise the Light
The Orbea Orca isn’t just light, it’s 6.7kg of climbing technology, with a design that will change the way you reach the top.
The feel of a bike this light and efficient is unbeatable, and the instant acceleration, vibration absorption, and responsive handling come from a frame that knows where to be light and where to be stiff.
Dominate the climbs
Achieving the Orbea Orca's lightness was achieved through numerous small improvements, focusing on every detail, and using the best materials available. Designing a bike like the Orca means working with the component and wheel design team from the very beginning to optimize both stiffness and weight.
The perfect balance between lightness and rigidity
It's possible to make very light bikes, but that's pointless if efficiency is lost due to a lack of stiffness. When we designed the Orbea Orca, we started with a stiffness goal to ensure even the strongest climbers could transmit their power efficiently. We therefore designed it to be the lightest, without compromising that figure.
Lightness with every pedal stroke
The feel of a lightweight bike is unbeatable, with immediate response and the sensation of acceleration with every pedal stroke. The lack of inertia translates into an agile and responsive ride when cornering and accelerating.
Optimized stiffness for each size
Optimizing the laminate for each size ensures that all Orcas perform equally. It requires a lot more work, but it's these small details that really make a difference in the saddle.
Powerspine
The lower section of the frame handles the majority of torsional and lateral loads.
ICR Plus
The internal wiring system is carefully routed along the best route under the stem and through the head tube, without friction or squeal, and is optimized for both traditional and electronic shifting systems.
SPECIFICHE ORBEA ORCA M11eLTD PWR*
Frame kit
Orbea Orca carbon OMX 2024 frame, monocoque construction, HS 1.5″, BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Fork Orbea Orca OMX ICR 2024, full carbon, 1-1/8″ – 1.5″ tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
FSA 1-1/2″ Integrated Aluminium Cup Headset
Transmission
Guarnitura Sram Red AXS Power Meter Dub 35x48t
Leve Sram Red AXS
Pignoni Sram XG-1290 10-30t 12-Speed
Cambio Sram Red AXS 12s
Deragliatore Sram Red AXS
Catena Sram Red 12-Speed
Cockpit
Handlebar Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Brakes
Freni Sram Red AXS
Brake Discs 160mm Front /140mm Rear
Wheels
Ruote Oquo Road Performance RP35LTD
Pneumatico Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP
Front block Orbea Thru Axle 12x100mm M12x2 P1 Lite
Orbea Thru Axle Rear Block 12x142mm M12x2 P1 Lite
Components
OC Performance XP10-S Carbon seatpost, 27.2mm, Setback 20
Sella Fizik Vento Antares R1 Carbon Rail 140mm
Accessories
Orbea Anti-Slippery/Shock Proof handlebar tape
Hub
Nome mozzo OQUO Q10
*For changes as per the Orbea website, do not hesitate to contact us!
**The manufacturer reserves the right to make any changes, technical improvements, or discontinue discontinued items it deems appropriate at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
