Description

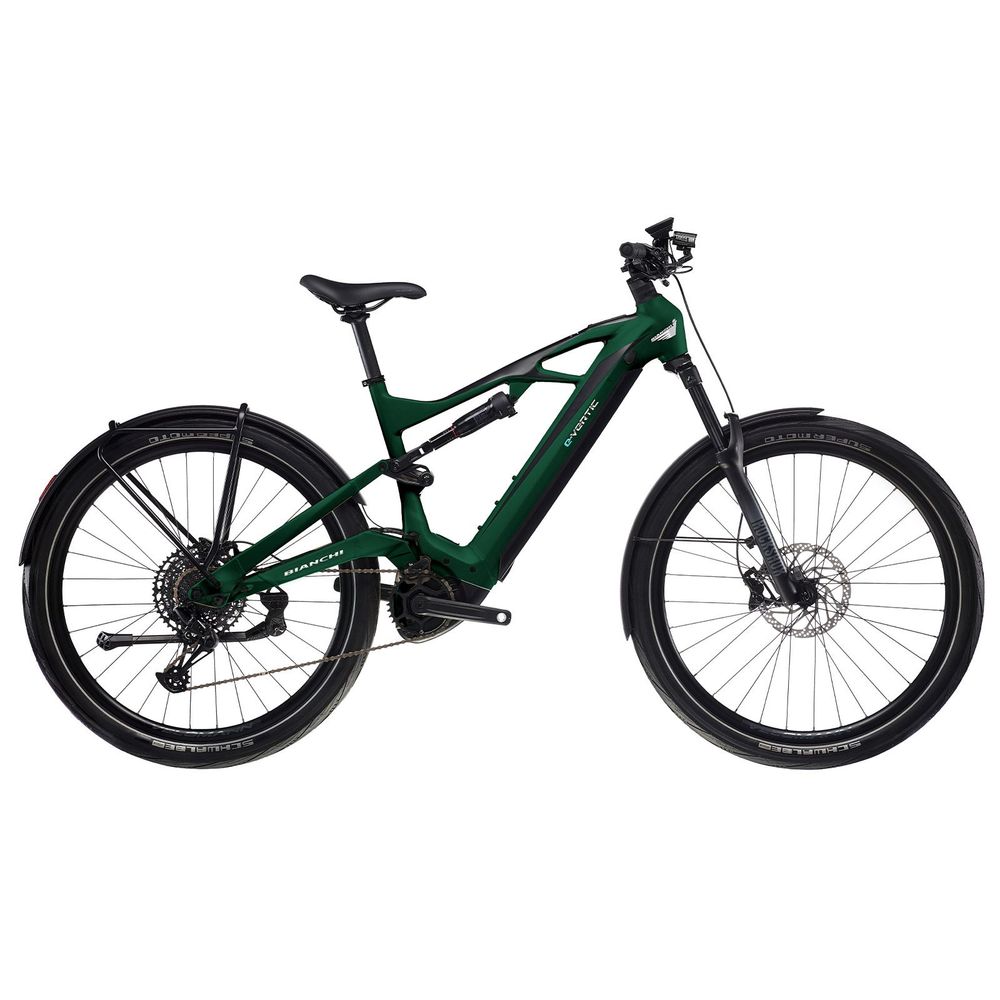

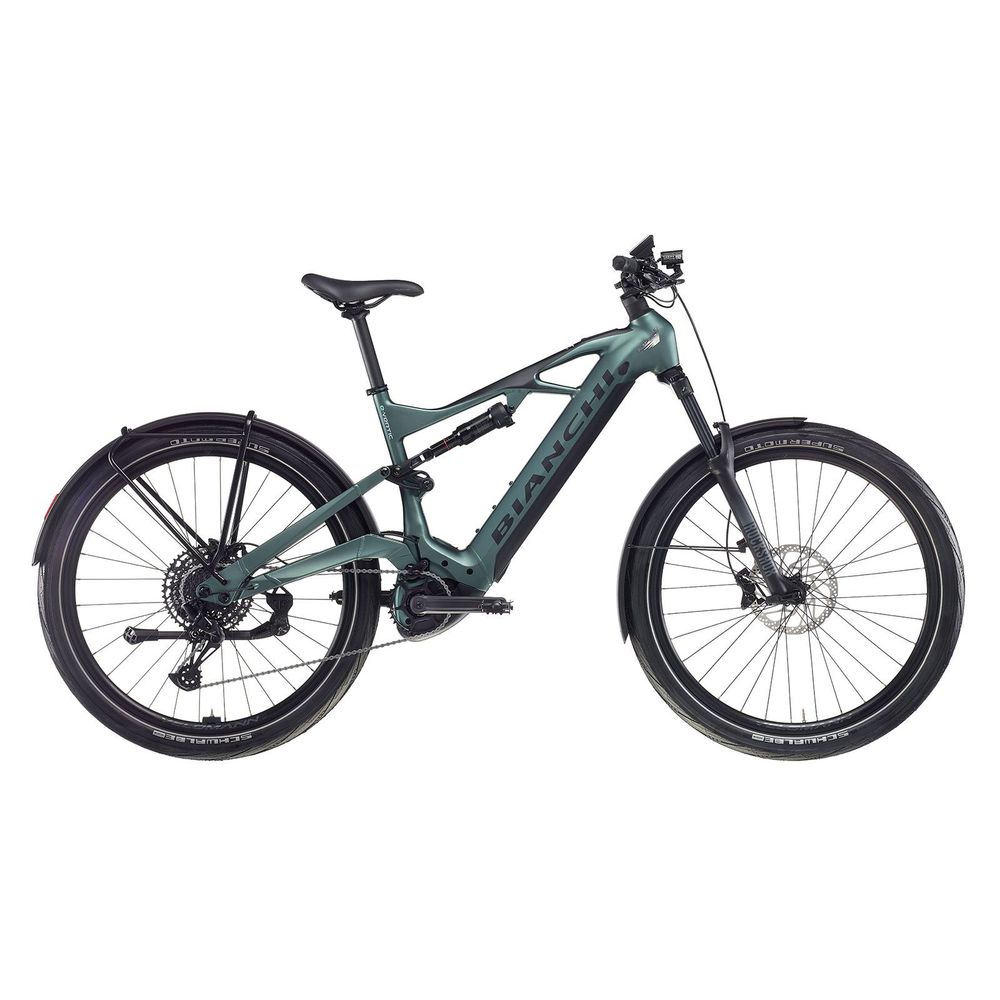

Bianchi E-Vertic FT Type Bosch Performance
YSBC5 SX 12SP
TECHNICAL SPECIFICATIONS
ENGINE UNIT
ENGINE Bosch Performance Line CX, 250W, 85Nm, Kiox display
BATTERIA Bosch Powertube 750Wh batteria integrata
CHASSIS
KIT TELAIO e-VERTIC FT-Type ALU taglia: 43, 48, 53 – Forcellini passanti da 12×148 mm – Freno a disco 180 post mount – 140 mm di escursione anteriore e posteriore – Passaggio cavi integrato
FORCELLA Sram RockShox Recon Silver RL 29″, escursione 140mm, HT conico da 1,5″, asse Maxle Lite 15x110mm BOOST, rotore minimo 160mm, rotore massimo 220mm, rake 42mm, corona 61mm, Solo Air, extl rebnd, steli 32mm
AMMORTIZZATORE POSTERIORE RockShox Deluxe Select, 210/55, DebonAir Progressive, Damper Type R, Compression tune L, Lockout Force n/a, black finish tube, external rebound adjustment, Volume reducer 0 Neg 2 Pos
SERIE STERZO Acros AZX-670 1.8″ top / 1.5″ – passaggio cavi integrato
TRANSMISSION
COMANDI Sram SX EAGLE 1×12 CAMBIO Sram SX Eagle , 12v GUARNITURA FSA CK-320/IS/Gen4 FSA E-Bike Diecast ISIS / 165mm / Alluminio pressofuso
BOTTOM BRACKET included in the engine
Sram SX EAGLE CHAIN, 12v
BRAKES
BRAKES Shimano, BL-M4100, BR-MT420, 4 pistons DISCS Shimano, SM-RT30, L 203MM Shimano, SM-RT30, M 180MM
WHEELS
RUOTE Velomann E-Sport Tubeless Ready 29″, 25-622, 32 fori
MOZZO POSTERIORE Formula CL-3248 per bloccaggio centrale, 32h, 12x148mm TA, HG, 2SB
MOZZO ANTERIORE Formula CL-811 per serratura centrale, 32h, 15x110mm TA
PNEUMATICI Schwalbe SUPERMOTO perf DD.raceguard 62-622 (29×2.4)
HANDLEBAR
ATTACCO MANUBRIO Velomann, 50mm, 35mm, 1″1/8 PIEGA Velomann, larghezza 780 mm, diam. 35 mm, rialzo 18 mm, backsweep 8°.
TAPE/GRIPS T-One Rock T-GP34 single grip, TPR, 130 mm, plastic inner body, aluminum clamp
SADDLE
REGGISELLA Velomann, lunghezza 350 mm per la taglia SM e 400 mm per la MD, diametro 31,6 mm, schienale 0 mm
SELLA Velomann 260x160mm, 365gr.
ACCESSORIES
PEDALI Fasten, con gabbia in acciaio ED, asse nero ED al boro, riflettore BS
PARAFANGHI Racktime Alumee 72mm, 28″ CAVALLETTO Bianchi Custom
PORTAPACCHI POSTERIORE Racktime, 29″, carico massimo 15Kg
LUCI ANTERIORI Lezyne, 115 lux, 310 lumen
REAR LIGHTS Trelock Rear light MudGuard Ebike6-12V
*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
