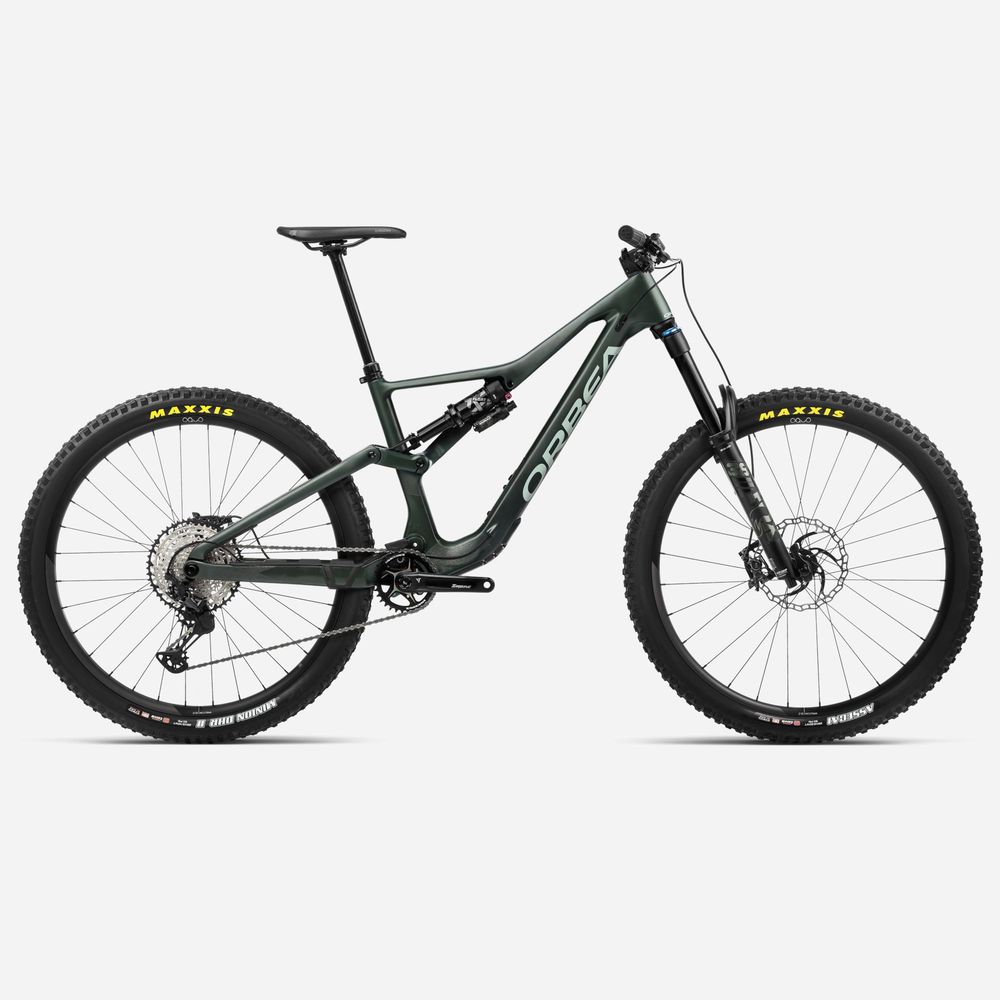

Orbea Rallon M10 2024

FOCUS ON FAST(ER)
Forged in Enduro racing, it's the obvious choice of our EDR team, but it's also always ready for fun outside of competition: racing with friends, celebrating successes and always touching the extreme. The Orbea Rallon is prepared to tackle the biggest park jumps, attack corners and overcome the most technical sections. Forget limits, forget distractions, just focus on speed.

ENDURO RACES EVOLVE AND RALLON HAS DONE THE SAME.

Longer and more relaxed than ever, the Orbea Rallon also has a longer standover, to offer more choice of frame size.

WHEN THE TRACK GETS STEEP, THE ONLY THING YOU WANT IS TO GET YOUR SADDLE OUT OF THE WAY AND FOCUS ONLY ON SPEED!

More space to move your body means more control and that translates into more speed. But low saddles mean long seat posts that require short seat tubes. The trick is to achieve this without affecting seat post insertion or frame geometry.

LONGER AND WITH GREATER ANGLE

The Orbea Rallon also has a lower standover and is compatible with higher travel seatposts. Plus, with two-position suspension and the ability to choose between two rear wheel sizes, it's even more versatile

COMPATIBILITY WITH MULLET

Choose 27.5" or 29" rear wheels without altering the geometry thanks to the two included shock absorber extensions.

STEEP 'N' DEEP

The Orbea Rallon is designed to work with long-travel seatposts, with the lowest standovers on the market and a seamless, sloping seat tube that offers the greatest insertion depth in this category. The only way: long travel dropper posts.

SPECIFICATIONS

FRAME KIT
FRAME Orbea Monocoque Race Carbon. Advanced Dynamics 167mm suspension technology. 29″ wheels.Concentric Boost 12×148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05

SHOCK ABSORBER Fox FLOAT X Performance 2-Position Evol LV custom tune 230×62.5mm

FORK Fox 38 Float Performance 170 Grip 3-Position QR15x110

HEADSET Acros Alloy 1-1/8 – 1-1/2″ Integrated

TRANSMISSION
Race Face Turbine 32t CRANKSET

LEVERS Shimano XT M8100 I-Spec EV

SPROCKETS Shimano CS-M7100 10-51t 12-Speed

SHIMANO XT M8100 SGS Shadow Plus REAR DERAILLEUR

Shimano M7100 CHAIN

CHAIN TENSIONER e*thirteen CL55 30-36t black

COCKPIT
HANDLEBAR OC Mountain Control MC20 Alu SL, Rise20, Width 800

OC MOUNTAIN CONTROL MOUNT MC20, 0º

BRAKES
BRAKES Shimano XT M8120 Hydraulic Disc

WHEELS
WHEELS Oquo Mountain Control MC32TEAM (29″ Front / Rear)

TIRE Maxxis Assegai 2.50″ WT FB 120 TPI 3C Maxx Terra EXO+ TR

TIRE Maxxis Minion DHR II 2.40″ WT FB 120 TPI 3C Maxx Terra Exo+ TR

COMPONENTS
OC Mountain Control MC21 SEAT POST, 31.6mm, Dropper

REMOTE SEATPOST Shimano SL-MT500 I-Spec EV

ERGON SM Enduro SADDLE

OC Lock On GRIPS

ACCESSORIES
TOOL HOLDER Accesories Containers

OC TOOLS Rear lever (Hex 6 & valve core removal)

*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
