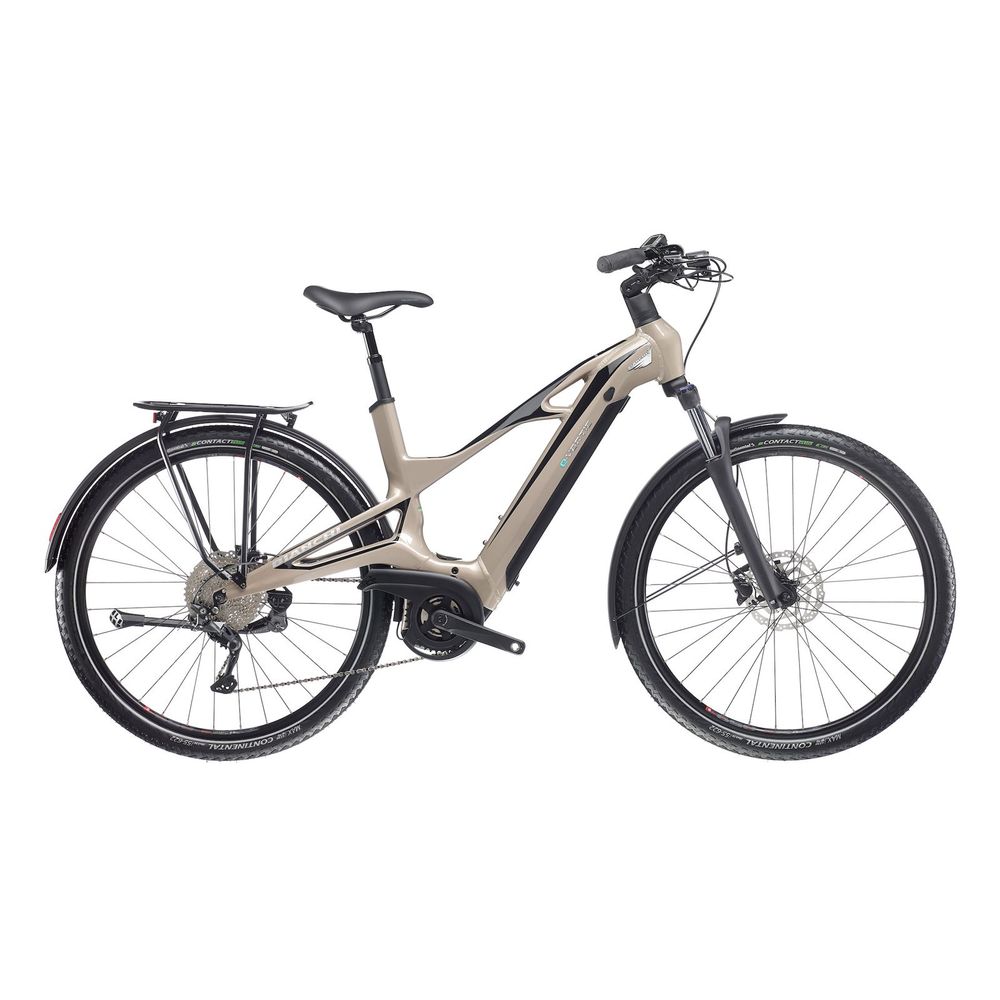

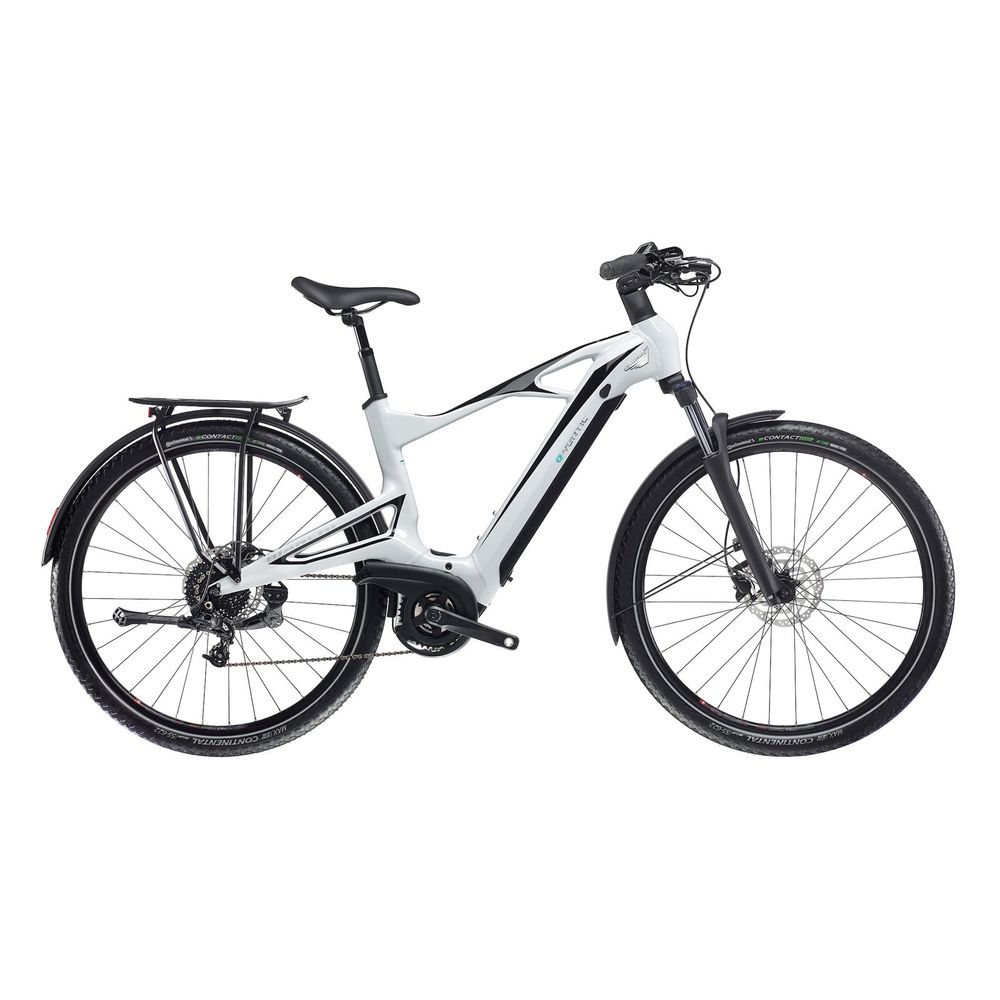

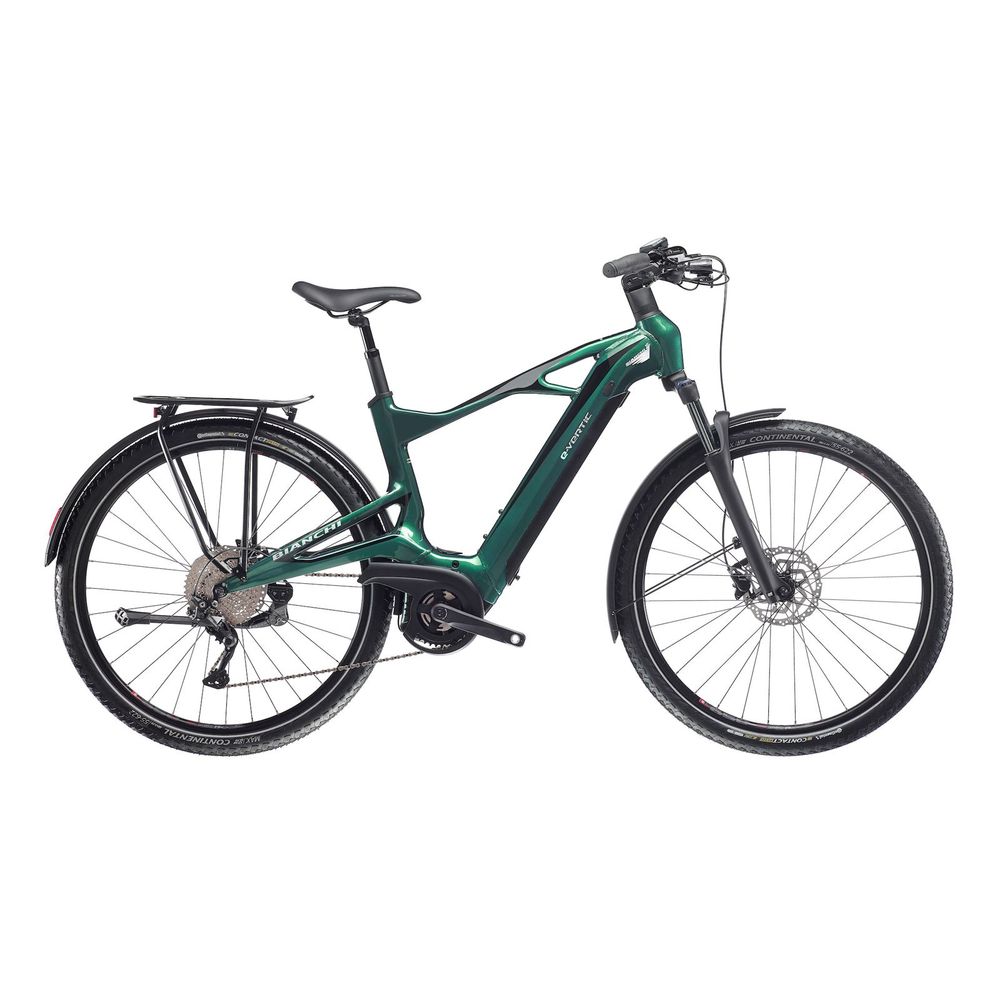

Bianchi E-Vertic T Type Bosch Performance Deore 1×10

Bianchi E-Vertic T Type Bosch Performance Deore 1×10

YSBC2 DEORE 10V

EQUIPMENT Bianchi E-Vertic T Type Bosch

ENGINE UNIT

Bosch Performance Line ENGINE

BATTERY Bosch Powertube 600Wh integrated battery

CHASSIS

e-VERTIC T-Type ALU FRAME KIT Sizes: 43, 48, 53 – 9×135 mm quick release dropouts – 180 post mount disc brake – Internal cable routing on the fork – Compatible with 625Wh- 180 post mount disc brake – Integrated cable routing – Compatible

FORK Suntour NVX30 NLO DS 29″, 100 mm travel, 1.1/8″ HT straight, no QR 9×100, min 160 mm rotor, max 180 mm rotor, 30 mm stanchions

HEADSET Acros Headset 1.5″ top / 1.5″ – integrated cable routing

TRANSMISSION

CONTROLS Shimano, SL-M4100-R, DEORE, 10-speed REAR DERAILLEUR Shimano, RD-M4120, DEORE, SGS 10/11-speed

CRANKSET FSA CK-220, Alloy, 170mm FSA Steel Chainring 38T BOTTOM BRACKET included in the motor

KMC e10S NPBK CHAIN BRAKES BRAKES Promax, DSK-925 DISCS Promax DSK-925, 180 mm, center lock

WHEELS

EBIKE WHEELS 650 TR 28″ – ETRTO 622 x 23C, 32 holes, height 18mm

REAR HUB Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM

FRONT HUB Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM TIRES Continental 55-622 eContact Plus

HANDLEBAR

HANDLEBAR STEM Velomann adjustable aluminum, integrated cable routing, 31.8 mm stem, 90 mm extension

Velomann BEND 31.8/680 mm, HEIGHT 20MM, THICKNESS 15

TAPE/GRIPS Herrmans GRIPset Oxy

SADDLE

SEATPOST Velomann 50mm travel, suspension seatpost length 300mm for size 43 length 350mm for sizes 48 and 53

Velomann SADDLE, size 270x162mm, 385gr.

ACCESSORIES

VP PEDALS, 7mm boron steel axle, EPB system, dimensions 112×83.3mm, reflector included

FENDERS Racktime Alumee 62mm, 28″

Bianchi Custom STAND

REAR RACK Racktime, 28″, max load 25Kg

FRONT LIGHTS Lezyne, 65 lux

REAR LIGHTS Trelock Rear light MudGuard Ebike6-12V

*The manufacturer reserves the right to make all the changes, technical improvements and cancellations of discontinued items to the products that are deemed appropriate, at any time and without notice. The descriptions and dimensions given in this publication are therefore not binding.
