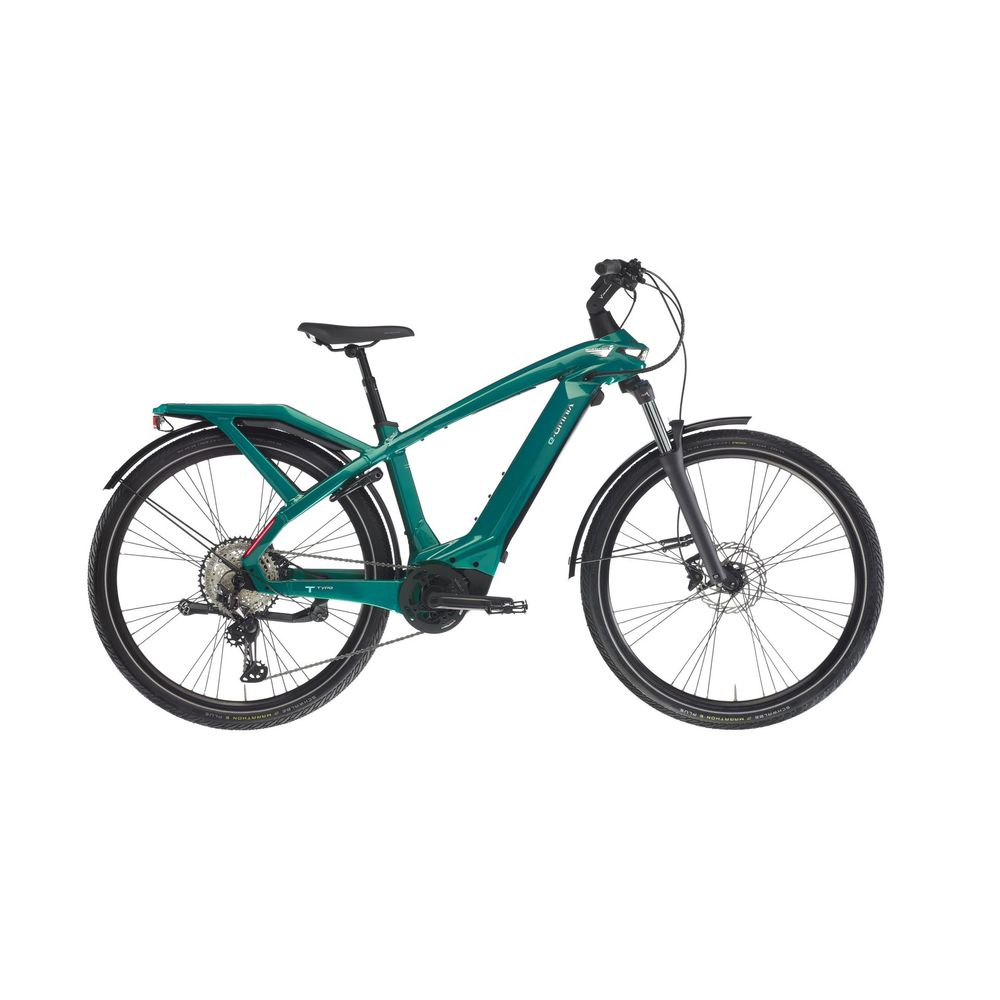

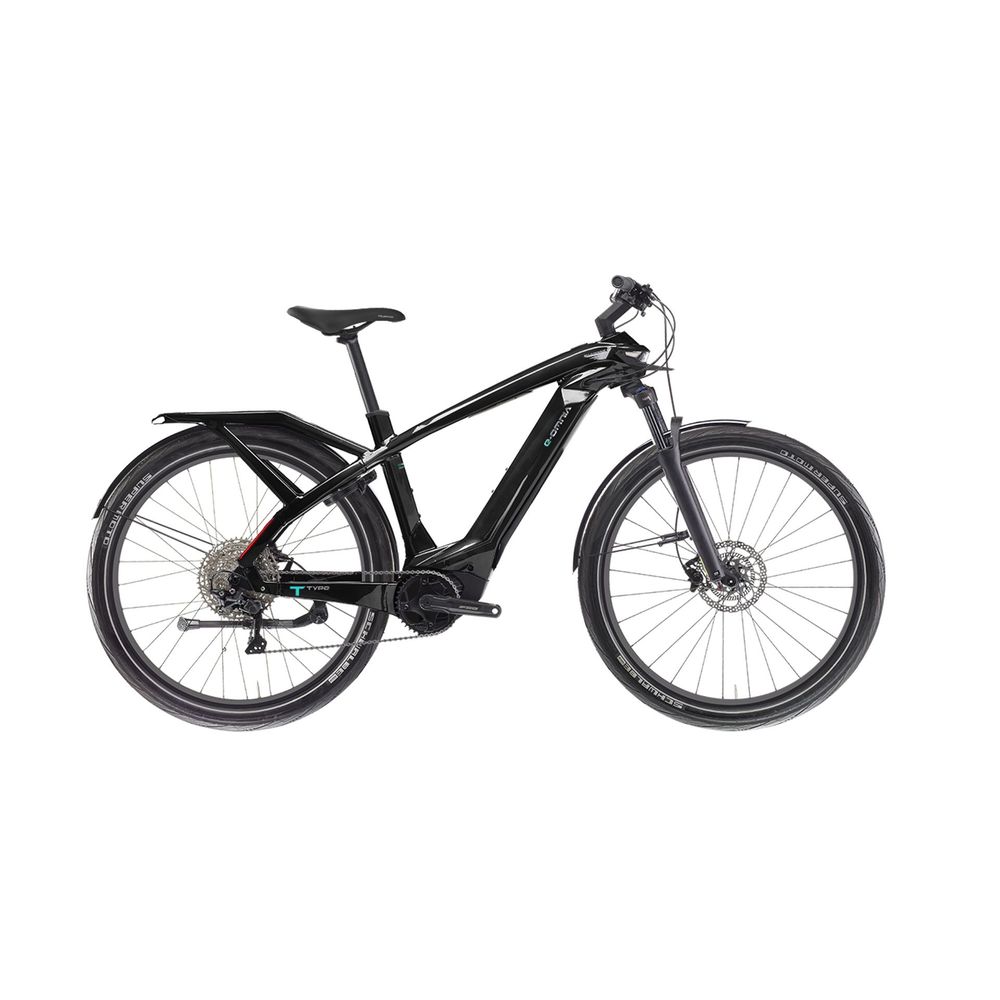

Bianchi E-Omnia Bosch500 T-Type 2023

Bianchi E-Omnia Bosch500 T-Type 2023

SPECIFICHE TECNICHE

FRAME:
E-OMNIA T-Type ALU, sizes: MD, LG, XL
(43,48,53), 12x148mm Thru-axle, Ready to fix
the chainguard, Post mount 160 disc brake
type, Ready to fix rear kyckstand, custom rear
carrier integrated in the frame design,
BatteryWall Bosch OmniaX/T/FX

SEATPOST CLAMP:
SeatpLock SET AL bk T-Tronik + Omnia
Screw M5x40, CH, hex, black

HEADSET
FSA NO.55R/558 1.5″ Anod Black w/FSA logo
w/TH-874-1 Stainless bolt

FORK:
Suntour XCM34-Boost NLO DS 15AH2-110 29″
travel 120mm, COIL w/Preload adjuster, AC4C,
34 STKM, CR platin, 1.5″to1-1/8″ tapered, STKM,
OLD diam.15-110, 15AH2-110,alloy, max rotor
203, post mount 160mm direct

SHIFTER:
Shimano Deore, SL-M4100-R, 10-SPEED
RAPIDFIRE PLUS 2050MM INNER

REAR DERAILLEUR
Shimano, RD-M5120, DEORE, SGS 10/11-SPEED,
TOP NORMAL

CRANKSET:
FSA crank 170mm ISIS black, CL 53mm,
MegaTooth 38T

BOTTOM BRACKET included in the motor

CHAIN
KMC e10S NPBK Anti-Rust 1/2″ x 11/128″ 122link
EPT

CASSETTE /
FREEWHEEL:
Shimano, CS-M4100-10, DEORE, 10-SPEED, 11-
13-15-18-21-24-28-32-37-42T

BRAKE:
Shimano, BL-MT200, BR-MT200, SM-MAF180P/
P2, RESIN PAD, 1000MM HOSEIBLE WITH
J-KIT/NON J-KIT BL,

BRAKE LEVER Included in the brake set

DISC ROTOR:
Shimano, SM-RT10, M 180MM, W/LOCK RING,
FOR RESIN PAD ONLY

FRONT HUB
Shimano, HB-MT400-B, CENTER LOCK DISC
32H, FOR 15MM THRU TYPE AXLE, OLD:110MM

REAR HUB
Shimano, FH-MT400-B, CENTER LOCK DISC 8-
11-SPEED FOR 12MM THRU TYPE AXLE, 32H
OLD:148MM

RIM/WHEELSET
EBIKE MAXX 29″ – ETRTO 622 x 25C 32hole,
height 19mm, double wall, single eyelet, wide
angle, 6,5mm valve

TIRE WTB Slick 2.2 29″ 54/54 27tpi Casing
STEM Velomann TDS-681 20° W/O SP connec 31,8

HANDLEBAR
Velomann Rise, width 740mm, diam.31,8mm, 9°
backsweep, 15mm rise,DB Alloy 6061-T6
GRIP / TAPE Grip 130 black-black

SEATPOST
Velomann, lenght: 350mm-SM, 400mm-MD/LG,
diam.31,6mm, 0mm seatback, Al2014 shaft

SADDLE
Velomann, black cover 8067 size 270x162mm,
385gr.
PEDALS
VPE-527 ED black aluminum body, axle 7mm
boron steel, EPB system size 116x103mm with
reflector

FRONT LIGHT
Integrated custom front and side lights made
w/Spanninga
REAR LIGHT Spanninga integrated rear lights

REAR CARRIER / PLATE
custom rear carrier integrated into the frame
design

KICKSTAND Velomann interasse 40mm – capacità 35kg.
MUDGUARD / STAY Bianchi custom mudguards
MOTOR UNIT:
Bosch Performance Line CX motor unit
w/500Wh Bosch PowerTube integrated battery

*La casa produttrice si riserva la facoltà di apportare ai prodotti tutte le modifiche, migliorie tecniche ed annullamenti di articoli di fine serie che siano ritenuti opportuni, in qualsiasi momento e senza alcun preavviso. Le descrizioni e le dimensioni riportate in questa pubblicazione non sono pertanto vincolanti.
